High Hardness 3×4×35 Ting Tungsten Carbide Strips For Tungsten Carbide Rod Blanks

Name: High Hardness 3435 Ting Tungsten Carbide Strips For Tungsten Carbide Rod Blanks
Brand: Halloytool
Price: 1 USD

Wholesale High Hardness 3×4×35 Ting Tungsten Carbide Strips For Tungsten Carbide Rod Blanks from china suppliers

Brand Name : Halloytool

Model Number : All

Certification : ISO9001:2008; GB/T19001-2008

Place of Origin : Hunan, China (Mainland)

MOQ : 5 kg

Payment Terms : D/P, L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability : 20 Ton/Tons per Month

Delivery Time : 20~30 days after your order comfirmation

Packaging Details : Plastic boxes inside and cartons outside

Commodity Name : Tungsten Carbide Strips

Material : 100% Virgin Tungsten Carbide

Application : Blade Sharpening

Size : 3×4×35

Grade : YL10.2

Surface : Rough Grinding

Color : Gray

Contact Now

High Hardness 3×4×35 Ting Tungsten Carbide Strips For Tungsten Carbide Rod Blanks

Descriptions:

Tungsten carbide strip with high hardness and good wear resistance is an ideal choice for wood cutting.

The company with high

- Quality raw materials and advanced equipment, to provide customers with high - quality cemented carbide strip.

- Easy brazing, good abrasion resistance and toughness.

- No material of particle size is added to maintain excellent strength and hardness.- standard size and custom size are available.

Grade and Application

Grade

Hardness
HRA

TRS
N/mm²

Density
g/cm³

Recommended Applications

YG6X

1800

14.9

It can be used for the steel wire, non-ferrous metal wire or rod die under the condition of less stress.

YG6

90.5

2000

14.9

It can be used for steel wire, non-ferrous metal and alloy bars under 20mm diameter with greater stress condition, and can also be used to pull tubing with a diameter of less than 10mm.

YG8

2200

14.7

It can be use in steel, non-ferrous metal and alloy bars and pipes, and also for manufacturing machinery parts, tools and vulnerable parts.

YG8.2

2000

14.6

YG8L

2000

14.6

YG11

88.5

2600

14.4

It can be used for high compression steel rod and steel tube drawing, working top hammer, perforation and stamping die under greater stress.

YG15

2600

YL50

2600

14.4

YG20

2800

13.6

It can be used to make punching film tools, such as punching watch parts, stamping battery shell, tooth paste mould, small size steel ball, screw, nut, etc.

YG20C

83.5

2800

13.6

It can be used for cold forging, cold pressing, cold pressing mould in standard parts, bearing, tool industries, etc., and is also useful in warhead and shell staming die.

TL40.5

2800

13.3

YB50

90.5

2600

It has high hardness and strength, excellent wear resistance, which can be used in the production of IC wireframe, plastic sealing film, drawing die, nozzle, ultra-thin blade, etc.

YB20

2200

14.5

It has high hardness, high strength and superior wear-resisting property, which is suitable for low, medium-speed electronic class progressive die and punch and for copper and aluminum thin sheet stamping.

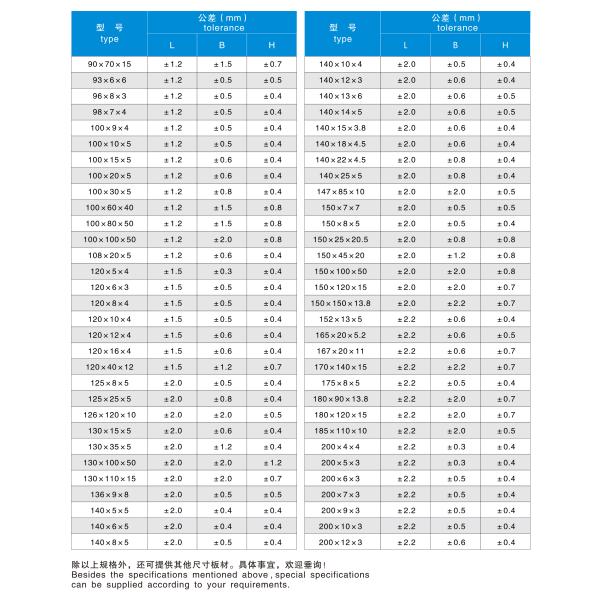

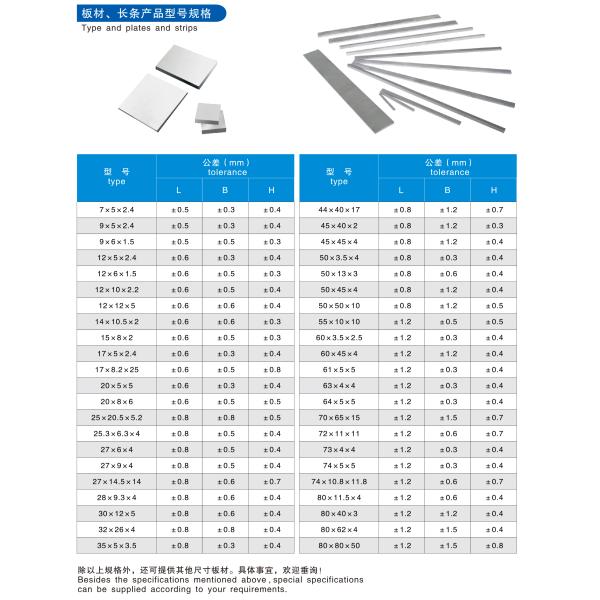

Dimension and Tolerance

Dimensions and Tolerance (mm)
Length(mm)	Tolerance	Width(mm)	Tolerance	H	Tolerance
<=80	+0/+1.6	<=10	+0/+0.5	<=3.0	+0/+0.3
>80~100	+0/+2.5	>10~20	+0/+0.6	>3~5	+0/+0.4
>100~150	+0/+3.0	>20~30	+0/+0.6	>5~8	+0/0.5
>150~200	+0/+4.0	>30~40	+0/+1.0	>8~10	+0/+0.8
>200~300	+0/+5.0	>50	+0/+1.5	>10	+0/+0.8
>300	+0/+6.0	----	----	----	----
Length:330 or 310 mm or cut to lenths upon requirements.

Reference Drawing

High Hardness 3×4×35 Ting Tungsten Carbide Strips For Tungsten Carbide Rod Blanks

Product show

High Hardness 3×4×35 Ting Tungsten Carbide Strips For Tungsten Carbide Rod Blanks

Notice: Level of surface grinding can be adjusted according to customer demand, (Default: Rough grinding) If you require accurate surface grinding, please contact us.
