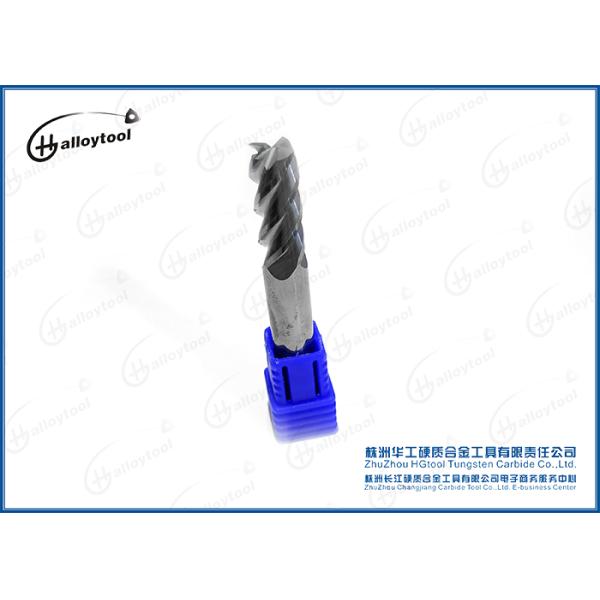

Tungsten Carbide End Mill 8mm/HRC 45 Coated Tialn 4 Flute Corner Radius Aluminium Cutting Tools
Grade: YG8/K20/K30 (We can offer other grade, too)
Type: we can accept customized type
Brand: HGalloytool
Material: tungsten carbide end mill
ISO9001
Long life,smooth cutting,high hardness,great wear-resistance
HRC55 Carbide Helix 45 End Mills
1.HRC55 grade :Super fine grain size:0.6um,Wc:89%,Co:11%, TRS:4000n/mm
2.Flutes: 4Flutes
3.Helix:45 degree
4.Coating:AlTiN
5.Work Piece: Carbon steel, alloy steel, cast steel, tooling steel, mould steel, heat-treatment steel. Aluminum alloy steel, cast iron ,Non ferrous alloy, metal , plastic and other materials
6.Specification:
| (Order No) | Cutting | Flute | Shank | A.0.L |
| d | l | D | L |
| 1.0×3×4D×50L×4F | 1 | 3 | 4 | 50 |
| 1.5×4×4D×50L×4F | 1.5 | 4 |
| 2.0×6×4D×50L×4F | 2 | 6 |
| 2.5×8×4D×50L×4F | 2.5 | 8 |
| 3.0×8×4D×50L×4F | 3 | 8 |
| 3.5×10×4D×50L×4F | 3.5 | 10 |
| 4.0×11×4D×50L×4F | 4 | 11 |
| Q. Are you a manufacturer? | A. Yes, we are. |
| Q. What's the payment term? | A. We accept Western union, Onetouch, T/T, and L/C. 30% T/T deposit and 70% balance before shipment, or agaisnt copy of BL, or L/C at sight.
|
| Q. How about delivery time? | A. For ready to press items, lead time is 20~30 days, while for new molds, it will need 10 days more to open molds. If you have a urgent order, we will do our utmost to push for it. |
| Q. What is your minimum order quantity(MOQ)? | A. No limit for MOQ. For non-standard products, mold fee need to be paid, but can be refunded late. |
| Q. What is your warranty? | A. We extend a 100% satisfaction guarantee on all items. If you’re not completely satisfied with our Products ,we’ll replace them or refund the fee . |
